TLDR: Cylindrical battery cells are round, metal-cased rechargeable cells used as building blocks in battery packs. Common sizes include 18650, 21700, 26650, 32700, and 4680, where the numbers describe approximate diameter and height in millimeters. They are popular for their mature manufacturing, mechanical strength, and broad availability, but pack designers still need to manage current ratings, thermal paths, interconnect complexity, and compliance paperwork.
What Is a Cylindrical Battery Cell?

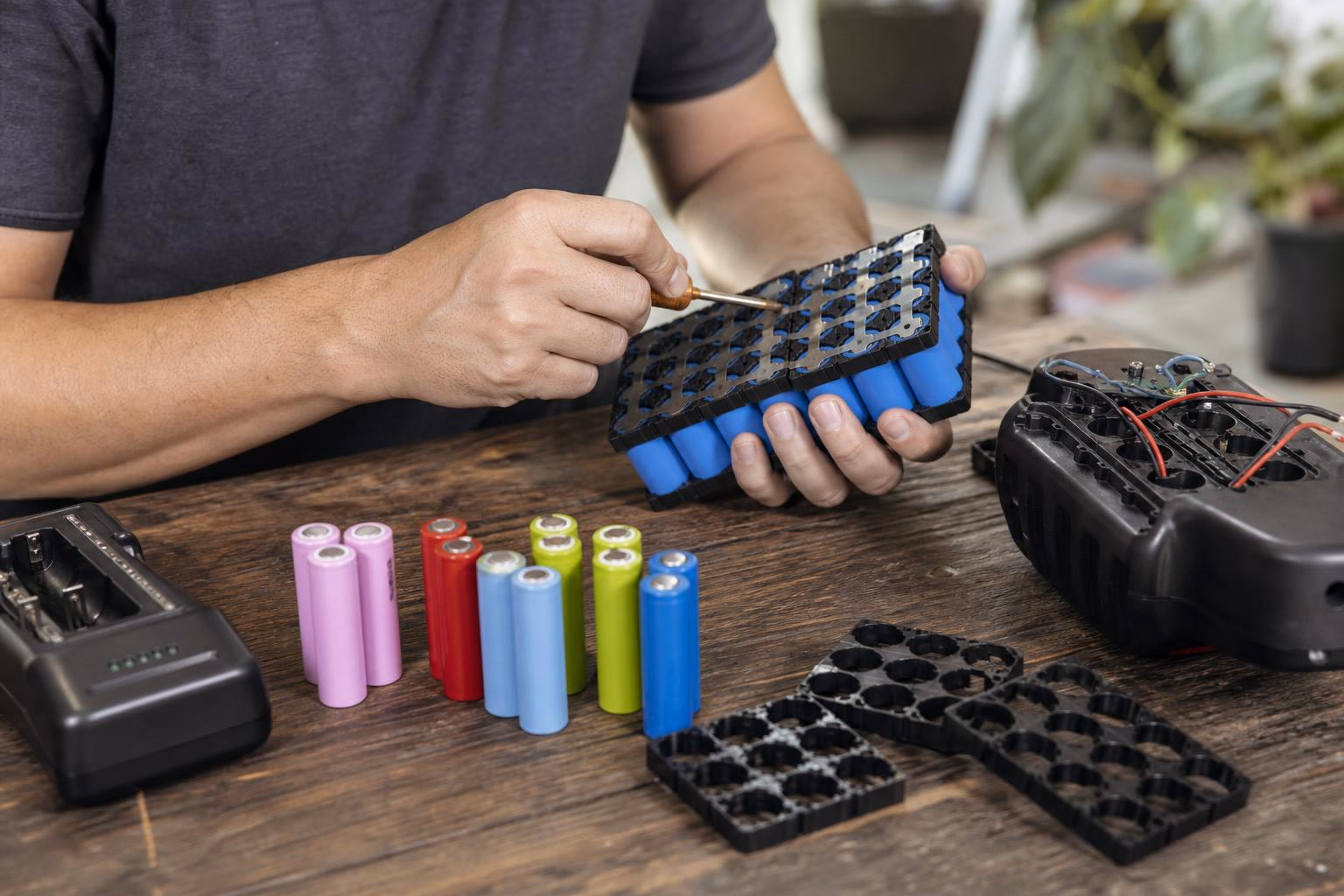

A cylindrical battery cell is a rechargeable cell built inside a round metal can. Electrode sheets (cathode, anode, and separator) are wound into a tight spiral called a “jelly roll," then sealed into a steel cylinder. The positive terminal sits at the top cap and the negative terminal is at the bottom.
This was the first lithium-ion format commercialized, according to the IEA’s Global EV Outlook, and it remains one of the three major cell form factors alongside prismatic and pouch cells. Cylindrical cells appear in everything from laptop batteries to electric vehicles.
A single cylindrical cell is not a battery pack. A cell is one electrochemical unit. A pack combines multiple cells in series and parallel, adds a battery management system (BMS), wiring, mechanical structure, insulation, and an enclosure. When someone says “18650 battery," they usually mean one cell, not a complete pack.
Browse Wintonic’s 18650 lithium-ion cells
What Do 18650, 21700, 26650, and 4680 Mean?
The numbers on cylindrical cells are a size shorthand describing approximate diameter and height in millimeters. Samsung SDI explains that an 18650 cell is about 18 mm in diameter and 65 mm tall, while a 21700 cell measures roughly 21 mm by 70 mm. NASA uses the same convention, placing the 4680 at approximately 46 mm in diameter and 80 mm tall.
Here are the most common cylindrical cell sizes and where they typically appear:
| Cell Size | Diameter | Height | Typical Applications |
|---|---|---|---|
| 18650 | ~18 mm | ~65 mm | Laptops, flashlights, power banks, power tools, e-bikes |
| 20650 | ~20 mm | ~65 mm | Lighting, consumer electronics, custom packs |
| 21700 | ~21 mm | ~70 mm | EVs, power tools, e-bikes, UPS, high-power packs |
| 26650 | ~26 mm | ~65 mm | Flashlights, LFP and NCM packs, industrial devices |
| 32650/32700 | ~32 mm | ~65-70 mm | LiFePO4 industrial packs, solar lighting, sprayers |
| 4680 | ~46 mm | ~80 mm | Next-generation EV structural packs |
The size code tells you nothing about chemistry, capacity, discharge current, cycle life, or quality grade. A “21700" can be a high-energy NMC cell, a high-power NCA cell, an LFP cell, or a low-quality rewrapped cell of questionable origin. Actual dimensions also vary slightly by manufacturer, wrapper thickness, and whether the cell has a button top or flat top.
Explore Wintonic’s 21700 lithium-ion cells
Cylindrical vs Prismatic vs Pouch Cells
The lithium-ion battery market uses three main physical formats. Each presents a different set of engineering trade-offs.
| Format | Strengths | Trade-offs | Best Fit |
|---|---|---|---|
| Cylindrical | Mature manufacturing, standard sizes, strong metal can, broad sourcing, flexible pack shapes | Round cells leave gaps in rectangular enclosures; many cells mean many welds and interconnects; thermal propagation needs careful management | Laptops, tools, e-bikes, flashlights, UPS, small/medium ESS, some EVs |
| Prismatic | Rectangular shape fills pack volume efficiently; fewer cells per pack; rigid case | Less standardized sizing; larger single-cell failure energy; swelling and compression management required | EVs, rack-mount ESS, home storage, forklifts, telecom |
| Pouch | Lightweight, customizable dimensions, broad cooling surface | Needs external compression and mechanical support; vulnerable to puncture; swelling is critical | Consumer electronics, some EVs, drones, custom high-performance packs |
The IEA notes that prismatic cells now dominate global EV and stationary storage, while cylindrical cells remain important across many applications. Pouch cells offer high energy density and dimensional flexibility.
Battery engineering practitioners on LinkedIn consistently emphasize that there is no universally best format. One common framing: the cell geometry affects manufacturing, heat movement, mechanical strength, monitoring, serviceability, and how the entire system wraps around the battery. The right question is not “which format wins?" but “which format fits this application?"
An FSAE discussion on Reddit made the same point more bluntly: comparing “pouch vs cylindrical" in the abstract is not useful. The right comparison is specific cell vs specific cell, using capacity, voltage, mass, impedance, and dimensions for the actual use case.
Advantages of Cylindrical Cells
Mature, Standardized Manufacturing
Cylindrical cells have been mass-produced longer than any other lithium-ion format. That maturity translates into well-understood processes, established quality benchmarks, and high automation. For buyers, this means commodity-level availability in standard sizes, especially 18650 and 21700.
For detailed guidance on sourcing 18650 cells, see this 18650 sourcing guide.
Strong Metal Can
The rigid steel can gives cylindrical cells better mechanical protection than unsupported pouch cells. This matters during automated assembly, shipping, and in applications subject to vibration or handling stress. The can simplifies fixture design and handling, though it does not eliminate the need for electrical insulation, venting paths, and pack-level abuse testing.
Broad Sourcing Options
Many manufacturers worldwide produce 18650 and 21700 cylindrical battery cells, from Samsung SDI, Panasonic, and Molicel down to mid-tier regional producers. NASA describes 18650 cells as the most common building blocks for many small satellite power systems and notes 21700 cells are increasingly popular in automotive applications.
“Commodity" does not mean low quality. It means many manufacturers make the format, giving buyers options on price, lead time, and second sourcing. It also means buyers must qualify suppliers carefully, because counterfeits are widespread in open marketplaces.
Flexible Pack Shapes
Pack builders can arrange small cylindrical cells into nearly any configuration: rectangular blocks, down-tube e-bike packs, laptop packs, tool packs, or custom enclosures. Practitioners in FSAE, e-bike, and flashlight communities consistently cite this flexibility as a key reason for choosing the cylindrical format, provided the builder manages current sharing, cell spacing, and welding quality.
Limitations and Design Risks
Lower Rectangular Packing Efficiency
Round cells leave gaps when arranged in a rectangular enclosure. The theoretical maximum packing density for circles in a hexagonal pattern is about 90.69%, and real-world packs fall below that after accounting for holders, insulation, busbars, cooling channels, and clearances.
Those gaps are not always wasted space. They can carry airflow, coolant, potting compound, or flame barriers. But compared with prismatic cells, cylindrical packs require more design work to convert cell-level energy into pack-level energy density.
More Cells, More Interconnects
A cylindrical pack often uses dozens or hundreds of cells. More cells mean more spot welds or wire bonds, more current-sharing paths, more holders, and more complexity in balancing and fault isolation.
Practitioners on the Endless Sphere e-bike forum frequently discuss the challenges of 13S or 16S pack layouts with parallel groups. One thread showed a builder comparing EVE 20P and Samsung 20R cells for an 80 A / 5 kW target, noting that common 21700 cells with low C-rates would require a much larger Ah pack just to meet the current requirement.
The lesson: high capacity is not enough. For e-bikes, scooters, tools, and UPS applications, the required continuous and peak current often drives cell selection more than raw mAh. Wintonic offers 26650 NCM cylindrical cells for packs that demand both energy and discharge capability.
Thermal Propagation Requires Pack-Level Design
PHMSA warns that lithium cells can overheat and ignite under short circuit, physical damage, improper design, or assembly, and that thermal runaway can propagate to nearby cells. Published research on 18650 cells has studied how propagation behavior changes with state of charge and cell spacing at gaps of 0, 4, 6, and 8 mm.
A cylindrical cell’s metal can and vent are safety features, but the pack still needs BMS protection, appropriate spacing, thermal barriers, vent gas management, and a properly designed enclosure. No cell format is inherently safe without proper pack engineering.
Counterfeit Cells Are a Sourcing Reality
BudgetLightForum has long-running threads where users test suspected counterfeit 18650 cells from open marketplaces. Common red flags include suspicious wraps, inconsistent top-cap geometry, capacity far below claims, high internal resistance, and severe voltage sag under load. One thread measured alleged HG2-type cells and concluded they were suitable only for low-drain flashlights, not e-bike or high-current packs.
Never qualify a cell by wrap color or marketplace listing title. Request datasheets, batch information, compliance documents, and sample test data from the supplier directly.
How to Read a Cylindrical Cell Datasheet
Two cylindrical cells of the same size can be built for completely different jobs. Consider two real 21700 examples.
Molicel’s INR21700-P45B has 4500 mAh capacity, 3.6 V nominal voltage, and 45 A continuous discharge. It is designed for high-power applications where sustained current matters most.
Panasonic’s NCR2170W is also a 21700, but with 5360 mAh typical capacity and a lower discharge rate. It is optimized for energy and runtime, not peak power.
Same size. Different jobs. Here are the key datasheet terms:
- Nominal voltage: The average voltage during discharge. Typically 3.6-3.7 V for NMC/NCA lithium-ion, 3.2 V for LiFePO4.
- Capacity (mAh): The charge the cell stores. Higher mAh means more energy, but not necessarily more current capability.
- Energy (Wh): Capacity times voltage. A 4500 mAh cell at 3.6 V is about 16.2 Wh.
- Continuous discharge current (A): The maximum safe sustained current. Often more important than capacity for power tools, e-bikes, and high-drain devices.
- C-rate: Current expressed relative to capacity. A 4500 mAh cell at 4.5 A is at 1C. At 45 A, it is at 10C. Not every cell can safely deliver high C-rates, and the U.S. Federal Register defines C-rate simply as discharge current divided by nameplate capacity.
- Internal resistance: Lower resistance means less heat generation and voltage sag under load.
- Cycle life: How many charge-discharge cycles before capacity drops to a threshold, usually 80%.
- Operating temperature: Charge and discharge limits often differ, and exceeding them accelerates degradation.
For applications that demand high continuous current from a compact cell, Wintonic produces 5C-rated 18650 cells designed for power tools and similar loads.
Cylindrical Is a Shape, Not a Chemistry
A common misconception: “cylindrical" does not specify the cell chemistry. The same physical format can house different active materials, and the chemistry determines voltage, energy density, cycle life, thermal stability, and cost.
| Chemistry | Nominal Voltage | Key Characteristics | Common Cylindrical Sizes |
|---|---|---|---|
| NMC / NCA | ~3.6-3.7 V | High energy density, good power | 18650, 21700 |
| LFP / LiFePO4 | ~3.2 V | Long cycle life, thermal stability | 26650, 32650, 32700 |
| LCO | ~3.6-3.7 V | Consumer electronics focus | 18650 (older laptop cells) |
The IEA reports that LFP supplied more than 40% of global EV battery demand by capacity in 2023, more than double its 2020 share. Cathode active material remains the largest cell cost driver, accounting for 40-50% of NMC cell production costs and 25-30% of LFP costs.
When a buyer requests “21700 cells," the next questions should be: what chemistry, what capacity, what discharge current, what cycle life, and what certifications? Without those answers, the size number alone tells you almost nothing about suitability.
Common Applications
Cylindrical battery cells appear across a wide range of products and industries:
- Laptop replacement batteries: 18650 cells remain the core of many laptop packs, typically in 3S2P or 2S3P configurations.
- E-bikes and e-scooters: 18650 and 21700 cells in series-parallel arrangements are standard. Flashlight enthusiasts on Reddit note that 21700 cells can improve runtime and sustained output over 18650, but the size and weight trade-off matters in compact designs.
- Power tools: High-discharge cylindrical cells power drills, saws, and impact drivers.
- Flashlights and lighting: 18650 and 26650 are standard in high-performance flashlights.
- UPS and backup power: Small to mid-size UPS systems often use cylindrical cell packs.
- Solar lighting and small ESS: 32650 and 32700 LFP cells are common in outdoor solar products and compact energy storage.
- EV modules: Tesla popularized 18650 and 21700 cylindrical architectures, and the 4680 format targets structural pack designs.
For projects that need complete battery packs rather than loose cells, Wintonic builds e-bike and e-scooter packs with integrated BMS and custom configurations.
For larger stationary storage, cylindrical LFP cells feed into rack-mount systems. Wintonic’s 51.2V rack-mounted ESS batteries serve UPS, solar, and commercial backup needs.
A Note on 4680 Cells
The 4680 format has generated significant interest due to its use in next-generation EV packs. A 4680 has roughly 5.5 times the geometric volume of a 21700. That reduction in cell count is appealing, but NASA notes that larger cylindrical cells can worsen internal temperature gradients and current-distribution unevenness unless features like tabless current collection reduce ohmic losses.
YouTube teardown channels like The Limiting Factor and Munro Live have explored how 4680 cells integrate into structural packs. The real innovation is as much about pack architecture as cell dimensions. For most B2B buyers today, 18650, 21700, 26650, and 32700 remain the practical cylindrical formats to evaluate.
Safety and Compliance Terms Buyers Should Know
UN 38.3
UN 38.3 is the transport test requirement for lithium cells and batteries. PHMSA states that cells offered for transportation must pass these design tests, and manufacturers must make test summaries available on request. The test covers eight categories: altitude simulation, thermal cycling, vibration, shock, external short circuit, impact/crush, overcharge, and forced discharge.
Ask for the UN38.3 test summary for the exact cell or pack model. A generic certificate covering a different product is not sufficient.
IEC 62133-2
IEC 62133-2 covers safety requirements for portable sealed secondary lithium cells and batteries. When cylindrical cells go into consumer products like laptops, flashlights, or portable devices, this standard is typically relevant.
IEC 62619
IEC 62619 covers safety requirements for secondary lithium cells and batteries in industrial applications: stationary storage, telecom, UPS, forklifts, golf carts, AGVs, and marine uses. When cylindrical cells are built into industrial packs or energy storage systems, this is the standard to reference.
UL 1642
UL 1642 addresses lithium batteries used as power sources in products and targets fire and explosion risk. It applies to single cells or multi-cell configurations.
Air Shipping Rules
IATA’s 2026 lithium battery guidance restricts how cells and packs can travel. Lithium-ion cells shipped alone (classified as UN 3480) are forbidden as cargo on passenger aircraft and must ship at a state of charge not exceeding 30% unless specific approvals apply. The 20 Wh threshold for individual cells and 100 Wh threshold for battery packs determine which packing instructions govern the shipment.
Regulations change. Always confirm current requirements with the carrier, freight forwarder, and applicable dangerous goods authorities before shipping.
UN38.3 Is Not Product Safety Certification
This confusion comes up constantly. UN38.3 proves the cell passed transport design tests. It does not replace product-level safety standards, BMS validation, charger compatibility testing, or thermal analysis. A cell that passes UN38.3 can still become dangerous through poor welding, a misconfigured BMS, wrong charger, or an inadequate enclosure.
How to Choose the Right Cylindrical Cell
Before requesting quotes, work through these five checks:
- Application load: What continuous and peak current does the device actually need? This often matters more than capacity for e-bikes, tools, and UPS systems.
- Energy target: Calculate required watt-hours, not just milliamp-hours. Wh equals Ah multiplied by nominal voltage.
- Space envelope: Does 18650, 21700, 26650, or 32700 fit the product shape? Larger cells reduce part count but take more space per cell.
- Thermal path: How will heat leave the cell and the pack? Bigger cells generate heat farther from the cooled surface.
- Compliance package: Can the supplier provide a datasheet, UN38.3 test summary, SDS/MSDS, applicable IEC/UL/CB documentation, and batch traceability?
DIY Solar Forum discussions highlight that even simple single-parallel packs can struggle with balancing and consistency if cells are not properly matched and documented. The lesson applies to all cylindrical cell sourcing: supplier qualification and documentation matter as much as the cell spec itself.
Wintonic manufactures cylindrical Li-ion and LiFePO4 cells in 18650, 20650, 21700, 26650, and 32650/32700 formats, with in-house BMS/PCM assembly and OEM/ODM pack development.
Browse Wintonic’s 32700 LiFePO4 cylindrical cells
FAQ
Are cylindrical battery cells always lithium-ion?
No. “Cylindrical" describes the physical shape, not the chemistry. Most cylindrical cells today are lithium-ion (NMC, NCA, or LCO), but many use LiFePO4, and emerging chemistries like sodium-ion are also being produced in cylindrical formats.
Is 21700 better than 18650?
Not automatically. A 21700 cell has about 1.47 times the geometric volume of an 18650 and can reduce cell count in a pack. But the better choice depends on capacity, discharge current, temperature limits, cycle life, cost, and whether the product enclosure can fit the larger cell. Compare specific datasheets, not just size labels.
What is the difference between a cell and a battery pack?
A cell is one electrochemical unit (one 18650, for example). A battery pack connects multiple cells in series and parallel, then adds a BMS, wiring, mechanical support, insulation, and an enclosure. Series connections increase voltage. Parallel connections increase capacity and current capability. A 13S10P e-bike pack, for instance, has 13 groups in series with 10 cells in parallel per group.
Why do cylindrical cells leave gaps in a pack?
Round objects cannot fill a rectangular space without gaps. In a hexagonal arrangement, cylinders theoretically cover about 90.69% of the cross-sectional area. In practice, holders, insulation, busbars, and cooling channels reduce packing efficiency further. These gaps can serve thermal or structural purposes, but they reduce volumetric energy density compared with prismatic cells.
What documents should I ask for when sourcing cylindrical cells?
At minimum: the cell datasheet, UN38.3 test summary for the specific model, SDS/MSDS, and any applicable certifications (IEC 62133-2, IEC 62619, UL 1642, CB certificate). Also request batch information and sample test data. A generic certificate covering a different model does not satisfy these requirements.
Does UN38.3 mean the battery is safe for my product?
No. UN38.3 is a transport design test. It shows the cell or battery passed specific transport-related tests, but it does not replace product-level safety design, BMS validation, charger compatibility, thermal testing, or end-product certification.
What is the difference between mAh and Wh?
Milliamp-hours (mAh) measure charge capacity. Watt-hours (Wh) measure energy. To estimate Wh, multiply Ah by nominal voltage. A 4500 mAh cell at 3.6 V nominal is about 16.2 Wh. When comparing cells across different chemistries or voltages, Wh is the more useful figure.
Can I replace 18650 cells with 21700 in an existing pack?
Usually not without a full redesign. The 21700 is 3 mm wider and 5 mm taller than an 18650. Cell holders, enclosures, series-parallel configurations, and BMS settings would all need to change. Treat a format change as a pack redesign, not a drop-in swap.
