Li-ion Cylindrical Cell: Sizes, Specs, UN38.3 Guide (2026)

TLDR

A li-ion cylindrical cell is a single rechargeable lithium-ion cell housed in a round metal can, built around a wound “jelly roll" of cathode, anode, and separator layers. Common formats include 18650, 21700, 26650, 32700, and 4680, where the numbers represent approximate diameter and length in millimeters. Cylindrical cells serve as building blocks for battery packs used in everything from laptops and power tools to e-bikes and energy storage systems. Choosing the right cell means matching format, chemistry, discharge current, thermal behavior, and compliance documentation to the actual application.

A li-ion cylindrical cell is a single rechargeable lithium-ion electrochemical unit packaged in a round metal can. Inside, the positive electrode (cathode), negative electrode (anode), and separator layers are wound into a tight spiral called a jelly roll, then connected to terminals, filled with electrolyte, and sealed. These cells are used individually in flashlights or combined in series and parallel groups to build battery packs for electronics, power tools, e-bikes, and energy storage.

Three things define the term:

• Shape: round metal can, not a flat pouch or rectangular prism
• Chemistry: lithium-ion (rechargeable), not primary lithium or nickel-metal hydride
• Unit: one cell, not a complete battery pack with BMS and housing

An 18650 li-ion cell is one of the most recognizable examples, but it is only one size within a larger family of cylindrical formats.

What “Li-ion Cylindrical Cell" Actually Means

Breaking the term into its parts clears up most of the confusion.

Li-ion refers to the rechargeable lithium-ion chemistry family. This includes subcategories like NCM (nickel-cobalt-manganese), NCA (nickel-cobalt-aluminum), and LFP (lithium iron phosphate). The chemistry determines voltage, energy density, discharge capability, cycle life, and thermal behavior.

Cylindrical describes the physical form factor. The round shape comes from the manufacturing process: long coated electrode strips are wound together, inserted into a cylindrical metal can, and sealed. This winding process is simple, continuous, and highly scalable, which is why cylindrical cells dominate high-volume production lines. Research on cylindrical cell manufacturing confirms that the wound jelly-roll assembly inside a metal can and cap is the defining structural feature.

Cell means one electrochemical unit with a single positive and single negative electrode. This distinction matters because regulations, shipping rules, and engineering specifications treat cells and batteries differently. IATA’s lithium battery guidance defines a cell as a single encased electrochemical unit and a battery as two or more cells electrically connected.

Cell vs Battery vs Battery Pack

This confusion trips up beginners and experienced buyers alike. Here is the simplest way to think about it.

When someone says “48V 20Ah battery," they are describing a pack made from many lower-voltage cells arranged in series and parallel. A 13S4P e-bike pack, for instance, has 13 cells in series and 4 in parallel per group, totaling 52 individual cells. The series connections raise voltage while the parallel connections raise capacity.

A 48V 22Ah e-bike battery pack built from 18650 cells in a 13S10P configuration uses 130 individual cylindrical cells. Each cell contributes its voltage and capacity to the overall system, but the pack’s BMS, fusing, wiring, and thermal management are what make it a usable product.

What Is Inside a Cylindrical Li-ion Cell

The round shape is not cosmetic. It reflects a specific manufacturing method that produces consistent, mechanically strong cells at scale.

Jelly roll. The cathode foil, anode foil, and separator membranes are layered and wound into a tight spiral. This wound assembly is the heart of the cell.

Tabs and current collectors. Metal tabs (typically copper or nickel for the anode, aluminum for the cathode) connect the wound electrodes to the cell’s external terminals. Tab placement affects current distribution, heat generation, and impedance. Newer large-format cells use multi-tab or “tabless" designs where the electrode edge itself acts as a broad current-collection path, reducing the bottleneck of narrow traditional tabs.

Metal can. The cylindrical steel or nickel-plated steel housing provides mechanical protection and structural rigidity. This is one reason cylindrical cells handle vibration and impact better than pouch cells.

Cap and safety features. The positive terminal cap typically includes a safety vent (CID, current interrupt device) that can break the circuit or release pressure if internal conditions become dangerous. Insulation rings and gaskets prevent short circuits between the cap and can.

Electrolyte. The liquid electrolyte fills the spaces within the jelly roll, enabling lithium-ion transport between cathode and anode during charge and discharge.

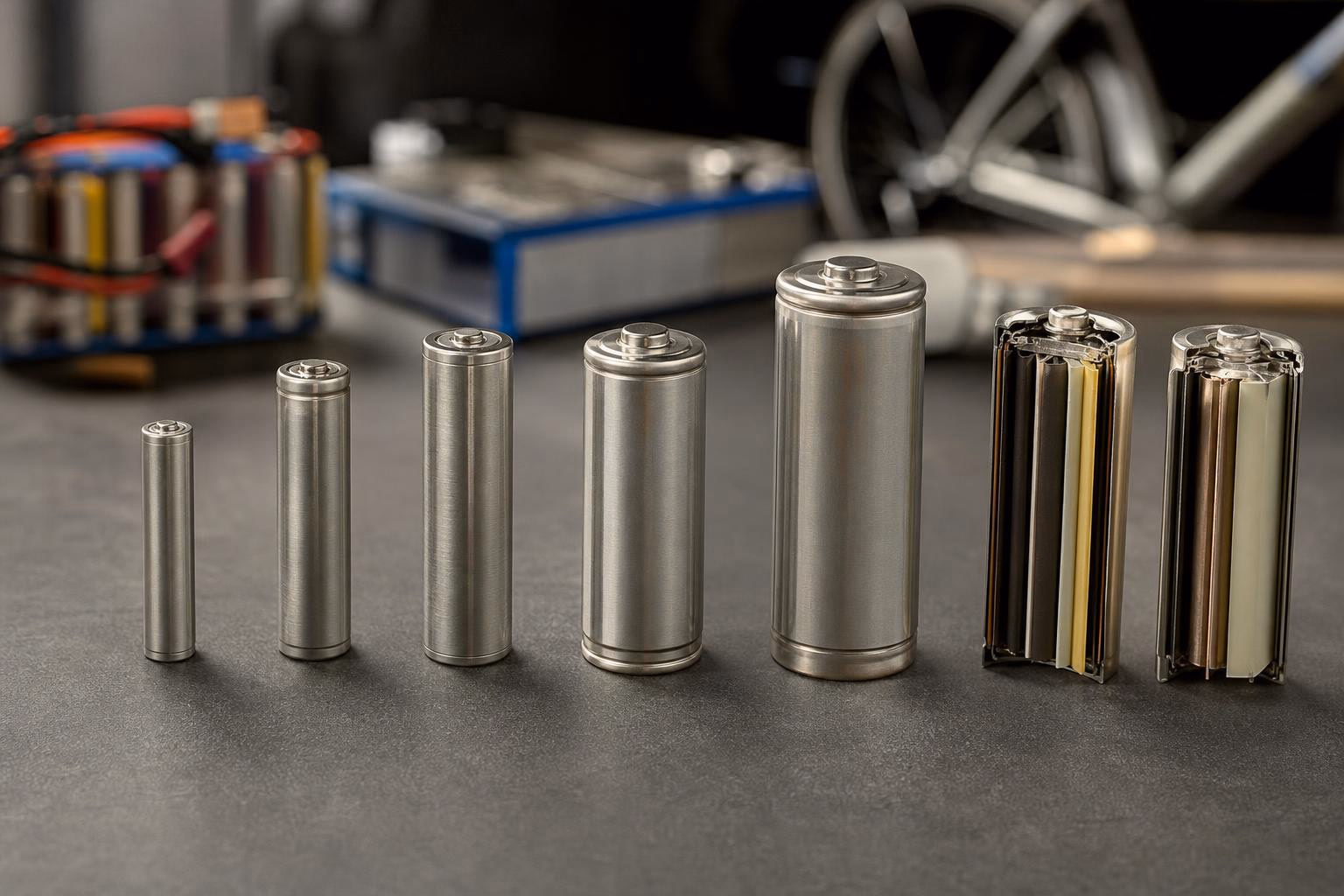

Common Li-ion Cylindrical Cell Sizes

The format number on a cylindrical cell is a size code, not a capacity or chemistry indicator. It describes approximate diameter and length in millimeters.

Battery University identifies the 18650 format as 18 mm x 65 mm, and research on the 4680 cell describes it as 46 mm diameter and 80 mm height.

Format is not chemistry. An 18650 cell can be NCM, NCA, LFP, or LCO depending on its design. A 32650 LiFePO4 cell uses the same cylindrical format concept as an 18650 NCM cell but with completely different voltage, energy density, and cycle life characteristics.

Similarly, a 20650 cylindrical cell occupies a middle ground between 18650 and 21700, useful when designers need more volume than an 18650 but the same length.

18650 vs 21700 vs 4680: Which Format Is Better?

There is no universal winner. Each format fits different design priorities.

18650

The 18650 is the most mature cylindrical li-ion cell format. Supply chains are deep, tooling is widely available, and decades of field data exist. It remains a strong choice when compact length, proven reliability, and broad sourcing matter most.

21700

The 21700 increases diameter by 3 mm and height by 5 mm compared to the 18650. That seemingly small change has big consequences. A controlled comparison using identical electrodes, separator, and electrolyte found that capacity and energy increased by about 50% per cell when moving from 18650 to 21700 across discharge rates from 0.5C to 3.75C. The same study suggested roughly 33% fewer cells are needed for similar pack energy.

Fewer cells means fewer welds, fewer interconnects, and potentially simpler pack architecture. But the larger cell also changes thermal behavior. Internal temperature sensors showed stronger heating tendencies for the 21700 format and more pronounced radial temperature gradients from core to surface.

For buyers comparing formats, a 21700 li-ion cell often makes sense when the goal is reducing cell count and weld complexity without dramatically changing the pack’s mechanical envelope.

4680

The 4680 format is much larger and designed primarily for EV architectures. It promises fewer cells per pack and potentially lower manufacturing cost at scale. But a 2023 study of 19 cylindrical cells from multiple manufacturers found that the first-generation Tesla 4680 cell did not show a significant energy-density or heating-behavior advantage over smaller formats with classic tab designs. Format helps, but execution, chemistry, electrode loading, and tab design all matter more than diameter alone.

Cylindrical vs Prismatic vs Pouch Cells

Cell shape is a system-design choice, not just a component preference. Battery practitioners on LinkedIn emphasize that choosing cylindrical, prismatic, or pouch affects cost curve, thermal strategy, structural integration, quality risk, and pack-level design.

Practitioners on Reddit’s r/FSAE report that their teams switched to cylindrical cells because they were cheaper and easier to obtain than pouch cells, while acknowledging that pouch cells may offer layout advantages for teams with existing EV pack experience.

The round shape of cylindrical cells creates air gaps between cells in a pack. This reduces volumetric packing efficiency compared to rectangular formats. But those gaps also provide natural channels for airflow cooling and help with thermal isolation between cells, which is a genuine engineering advantage in many designs.

How to Read a Cylindrical Cell Datasheet

Spec sheets can be intimidating, but a handful of parameters tell you almost everything you need to know.

IATA’s guidance gives the standard energy calculation: Wh equals nominal voltage multiplied by amp-hours. If capacity is listed in mAh, divide by 1000 to convert to Ah first.

Real-world capacity examples

To calibrate expectations: Panasonic lists 18650 cells at 3.6V nominal with typical capacities around 3350-3450 mAh. Molicel’s INR-21700-P42A, a power-oriented 21700 cell, is rated at 4.2 Ah with 45A continuous discharge. A Samsung INR21700-50E, designed for energy rather than power, reaches 5000 mAh but with a much lower continuous current rating.

The takeaway: do not choose a cylindrical cell by mAh alone. Choose it by the load profile, including current, pulse duration, temperature, runtime target, cycle-life target, and available cooling.

Current per cell matters more than pack current

Practitioners on Reddit consistently push buyers to calculate current per cell before selecting a format:

Current per cell = total pack current / number of parallel cells

Compare that number against the datasheet’s continuous discharge rating, leaving margin for heat buildup and aging. One thread on r/18650masterrace showed how experienced builders compare 18650 vs 21700 choices based on continuous current, parallel count, and cell temperature rather than headline capacity.

Where Li-ion Cylindrical Cells Are Used

The applications span nearly every industry that needs portable or modular stored energy.

Consumer electronics. Laptop batteries, portable speakers, flashlights, and power banks have relied on 18650 cells for decades.

Power tools. Cordless drills, impact drivers, and saws use high-drain cylindrical cells, often 18650 or 21700 format.

Light electric vehicles. E-bikes, e-scooters, and electric motorcycles commonly use cylindrical cell packs. A custom e-bike battery pack typically contains dozens or hundreds of cylindrical cells in a series-parallel configuration with integrated BMS.

Energy storage. Home batteries, commercial UPS systems, and rack-mounted ESS modules use cylindrical cells, often LiFePO4 chemistry in 32650 or 32700 formats for long cycle life.

Industrial and specialty. Medical devices, solar lighting controllers, agricultural sprayers, and GPS tracking equipment all use cylindrical li-ion cells matched to their specific voltage, current, and environmental requirements. A 32700 LiFePO4 cell rated at 7Ah, for example, suits sprayers and lighting systems where cycle life and thermal stability outweigh energy density.

Electric vehicles. Tesla popularized the use of thousands of cylindrical cells (originally 18650, then 21700, now 4680) in EV battery modules.

Safety and Compliance Essentials

Cylindrical li-ion cells are not safe by default. Their metal can provides mechanical robustness, but pack safety depends on cell quality, BMS/PCM design, thermal management, fusing, spacing, and verified compliance testing.

Key standards

UN38.3 is required for transporting lithium cells and batteries. It covers eight tests: altitude simulation, thermal cycling, vibration, shock, external short circuit, impact/crush, overcharge, and forced discharge. Manufacturers and distributors must make the test summary available for each cell or battery model.

IEC 62133-2 specifies safety requirements for portable sealed secondary lithium cells and batteries under intended use and reasonably foreseeable misuse.

UL 1642 covers lithium batteries used as power sources in products, focused on reducing fire and explosion risk.

Shipping restrictions

Lithium-ion cells shipped by air under certain packing instructions must be at a state of charge not exceeding 30% of rated capacity. UN 3480 lithium-ion batteries shipped alone are forbidden as cargo on passenger aircraft.

Thermal runaway is format-dependent

A NIST study of heat-abuse experiments on 18650 and 21700 cells found that under continuous heating, the delay between safety valve breakage and ignition was 228-312 seconds for 18650 cells versus only 66-148 seconds for 21700 cells. For 21700 cells at 75% and 100% state of charge, ignition was unavoidable even when heating stopped within 10 seconds of valve breakage.

This data makes the case clearly: larger cells may reduce cell count, but they also compress the time window for safe intervention if something goes wrong. Pack designers must account for this.

Battery Mooch, a well-known YouTuber in the battery community, repeatedly warns users to never exceed a cell’s continuous current rating and to keep the plastic wrap and top insulating ring intact. Damaged wraps and missing insulators can create short-circuit risk in metal-bodied devices and pack assemblies.

How to Choose a Li-ion Cylindrical Cell

Use this five-factor framework when evaluating cylindrical cells for a project.

1. Envelope

What diameter and length fit the product or pack design? An 18650 fits where a 26650 will not. Start with physical constraints.

2. Chemistry

NCM and NCA offer higher energy density and voltage per cell. LFP offers longer cycle life and better thermal stability at a lower voltage and energy density. The application determines which trade-off is acceptable.

3. Thermal load

What current will each cell see? What is the duty cycle? What ambient temperature range? What cooling path exists? A cell that works perfectly at 25°C and 1C discharge may overheat at 3C in a sealed enclosure.

4. Compliance

What markets will the product enter? What transport modes will be used? Request model-specific UN38.3 test summaries, SDS/MSDS, and applicable IEC/UL/CB documentation before committing to a supplier.

5. Commercial reality

Can the supplier provide stable lots, consistent specs, traceability, samples, and documentation? Can they support OEM/ODM requirements like custom labeling and packaging?

Buyer Red Flags: How to Spot Fake or Exaggerated Cells

Counterfeit and relabeled cylindrical cells are a real problem in the supply chain. A peer-reviewed study on counterfeit lithium-ion cells documented cells labeled 5000 mAh in an 18650 format, a capacity the authors state is presently unachievable. Testing found those cells delivered only 1200 mAh.

Users on Reddit’s r/18650masterrace regularly warn that, as of recent discussions, no 3.6V 18650 cell exceeds 4000 mAh and no 21700 cell exceeds 6000 mAh from legitimate manufacturers. If a listing claims otherwise, the vendor’s entire catalog should be treated with suspicion.

Watch for these warning signs:

• 18650 cells claiming 5000, 6000, or 9000 mAh
• No manufacturer datasheet for the exact model
• Capacity rated without specifying discharge rate, temperature, or cutoff voltage
• “Pulse current" marketed as if it were continuous discharge capability
• No UN38.3 test summary tied to the specific model
• Missing lot codes, date codes, or batch traceability
• Cell wrappers that mimic major brands but with subtle differences
• Marketplace listings from unknown sellers with no verifiable history

One BudgetLightForum thread noted that even real cells from non-major brands can change over time, making ongoing testing and supplier verification essential.

Documentation checklist for B2B sourcing

Before placing a bulk order for cylindrical li-ion cells, request:

1. Official datasheet for the exact model number
2. UN38.3 test summary specific to that model
3. SDS/MSDS
4. Transport identification report if required by your logistics provider
5. IEC 62133-2, CB, or UL documentation where applicable
6. Lot/date code and batch traceability records
7. Charge/discharge curves at relevant temperatures and currents
8. Cycle-life test conditions (not just a cycle count)
9. Sample test agreement for capacity, DCIR, self-discharge, and temperature rise
10. BMS/PCM specification if buying assembled packs

Do not build high-power packs from unknown, mismatched, or undocumented cells. One Reddit thread about salvaged 21700 cells from a power bank warned that a 3000 mAh cell with an unknown current rating should be assumed low-current and never used for an e-bike pack.

From Cells to Complete Battery Systems

A bare cylindrical cell is a component, not a finished product. Turning cells into a usable battery system requires series/parallel configuration, a BMS matched to the chemistry and load profile, appropriate wiring and busbars, thermal management, mechanical housing, and safety documentation.

For buyers who need complete battery systems rather than bare cells, the progression from cell selection to pack integration to energy storage is where most of the engineering value sits. A 26650 NCM cell is a starting point, but the BMS, thermal path, enclosure, and compliance documentation are what make it deployable.

For B2B buyers sourcing cylindrical li-ion cells for OEM/ODM projects, Wintonic offers cylindrical cell formats including 18650, 20650, 21700, 26650, and 32650/32700, along with pack assembly and BMS/PCM integration services.

Frequently Asked Questions

Is a li-ion cylindrical cell the same as an 18650 battery?

No. The 18650 is one cylindrical cell format measuring approximately 18 mm by 65 mm. Li-ion cylindrical cells also come in 21700, 26650, 32700, 4680, and other sizes. Calling every cylindrical cell an “18650" is like calling every car a sedan.

Is a cylindrical cell a battery?

Technically, a cell is one electrochemical unit. A battery is two or more cells electrically connected. In everyday language people use “battery" for single cells too, but regulations and engineering specs make the distinction because it affects testing requirements, shipping classifications, and Wh limits.

Are 21700 cells always better than 18650?

Not always. A 21700 cell can store roughly 50% more energy than an 18650 of similar design, which reduces cell count and weld count in a pack. But 21700 cells show stronger heating tendencies, shorter safe intervention windows under thermal abuse, and may not fit existing 18650-based mechanical designs. The best format depends on the application.

Are cylindrical cells safer than pouch or prismatic cells?

Not automatically. The metal can provides mechanical strength, and the safety vent can interrupt current or release pressure. But pack-level safety depends on cell quality, BMS design, fusing, spacing, thermal management, and verified testing. NIST research shows that even within cylindrical formats, the safe intervention window varies dramatically between 18650 and 21700 cells depending on state of charge.

What documents should I request when buying cylindrical li-ion cells?

At minimum: the official datasheet, UN38.3 test summary for the exact model, SDS/MSDS, lot/date code traceability, and any applicable IEC 62133-2, UL, or CB documentation. IATA requires manufacturers and distributors to make the lithium battery test summary available.

How do I calculate the energy of a cylindrical cell in Wh?

Multiply nominal voltage by capacity in amp-hours. A 3.6V cell rated at 3000 mAh stores 3.6 x 3.0 = 10.8 Wh. Always check what discharge rate, temperature, and cutoff voltage the capacity rating was measured at, because capacity drops under higher loads and extreme temperatures.

Can I use bare cylindrical cells without a BMS?

This is strongly discouraged for any multi-cell configuration. A BMS protects against overcharge, over-discharge, overcurrent, and temperature extremes. Even single-cell applications in devices like flashlights rely on the host device’s electronics for basic protection. Using unprotected cells without appropriate circuit protection creates fire and damage risk.

Are 5000 mAh 18650 cells real?

No. Peer-reviewed research confirms that 5000 mAh is not achievable in the 18650 format with current lithium-ion technology. Cells with such claims have tested at a fraction of the advertised capacity. If a vendor lists 18650 cells at 5000 mAh or higher, treat their entire inventory with suspicion.
