TLDR
Long cylindrical cells are round, elongated rechargeable battery cells identified by size codes like 18650, 21700, 26650, 32650, and 32700. These numbers describe the cell’s approximate diameter and length in millimeters, not its chemistry, capacity, or quality. Cylindrical cells serve as building blocks for battery packs in laptops, power tools, e-bikes, solar lighting, UPS systems, and energy storage. Choosing the right cell requires matching chemistry, discharge current, thermal design, BMS requirements, and certifications to a specific application.
What Are Long Cylindrical Cells?
Long cylindrical cells are rechargeable battery cells built in a round, elongated metal-can format. In lithium battery sourcing, the term usually refers to standard cylindrical formats such as 18650, 21700, 26650, 32650, and 32700. These cells are used as core building blocks in battery packs for electronics, power tools, e-bikes, solar lighting, UPS systems, and energy storage.
“Long cylindrical cell" is not a formal IEC category. The standard industry term is simply “cylindrical cell." The phrase “long cylindrical" is descriptive, used when a cell’s length is noticeably greater than its diameter. Lithium-ion cells are generally classified into three form factors: cylindrical, prismatic, and pouch (NFPA lithium-ion battery hazard report).
You may also see these cells called “round cells," “cylindrical Li-ion cells," “cylindrical LiFePO4 cells," or simply by their size code (like “18650 battery cell"). They all refer to the same basic form factor. A quick note for biology students who landed here: “long cylindrical cells" can also describe muscle fibers. This article covers battery cells only.
Browse cylindrical lithium-ion battery cells in formats including 18650, 21700, 26650, and 32700.
What the Numbers Mean
The size code on a cylindrical cell is a shorthand for physical dimensions. It tells you approximately how big the can is. That is all it tells you.
For standard cylindrical lithium cells, the first two digits represent the diameter in millimeters, and the remaining digits represent the length in tenths of millimeters. An 18650 cell is roughly 18 mm in diameter and 65.0 mm long. A 32700 is about 32 mm in diameter and 70.0 mm long. The NFPA confirms this convention and states clearly that the form-factor designation does not describe chemistry or capacity (NFPA report).
This is worth repeating because it is the single most important thing buyers get wrong.
Size is not spec. A code like 18650 or 32700 tells you the cell envelope. It does not tell you the chemistry, capacity, discharge rating, cycle life, safety certification, grade, or supplier quality.

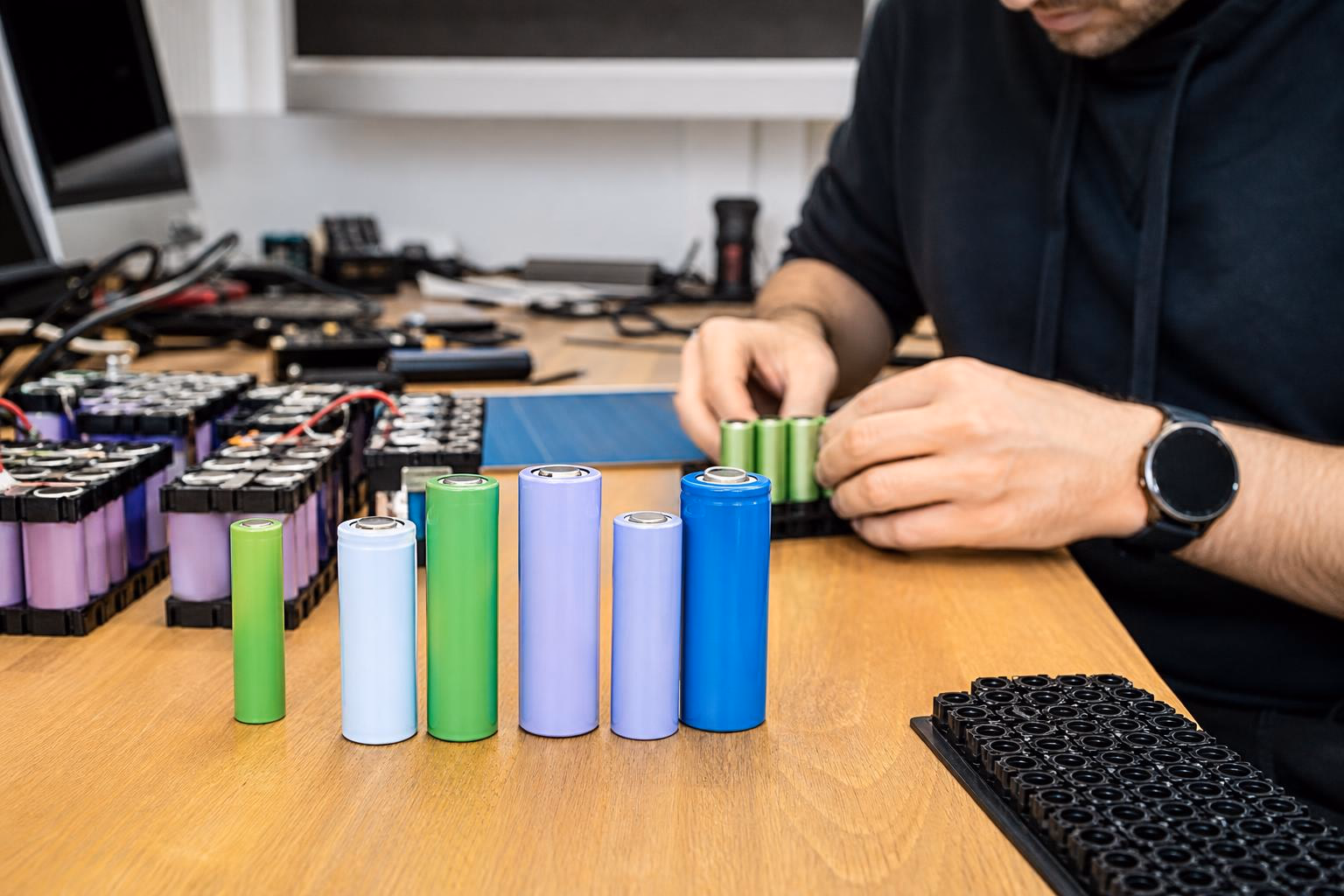

Common Long Cylindrical Cell Sizes
| Format | Approx. Diameter | Approx. Length | Common Notes |
|---|---|---|---|
| 18650 | 18 mm | 65 mm | Mature Li-ion format. Laptops, power tools, flashlights, e-bikes. |
| 21700 | 21 mm | 70 mm | Higher per-cell capacity than 18650. E-bikes, tools, EV-adjacent packs. |
| 26650 | 26 mm | 65 mm | Larger format for higher capacity or current applications. |
| 32650 | 32 mm | 65 mm | Large cylindrical, often LiFePO4. Industrial and solar packs. |
| 32700 | 32 mm | 70 mm | Common 3.2V LiFePO4 format, typically 6Ah class. |
| 4680 | 46 mm | 80 mm | Large EV cylindrical format. |
| 4695 | 46 mm | 95 mm | Large EV cylindrical format. |
| 46120 | 46 mm | 120 mm | Large EV cylindrical format. |
The 46-Series Trend
The 46-series cells represent a newer wave in electric vehicle battery design. BMW describes its Gen6 round cells as 46 mm in diameter with 95 mm and 120 mm height options (BMW Group). Samsung SDI began production of 46-series cylindrical batteries in 2025, stating they hold roughly six times the energy capacity of 21700 cells (Samsung SDI). LG Energy Solution secured a 67 GWh supply agreement with Rivian for 4695 cylindrical batteries (LG Corp).
For most non-EV applications (laptops, tools, lighting, e-bikes, industrial backup), the 18650 through 32700 range remains the practical buying universe. Fraunhofer ISI specifically notes that 4680 cylindrical cells are particularly interesting for packs above 1 kWh, while 18650 and 21700 continue to serve mobile and electronic applications (Fraunhofer ISI cell format report).
If you are sourcing 18650 cells specifically, this guide on sourcing 18650 battery cells covers OEM considerations in more detail.
Cell vs Battery vs Battery Pack
These terms get mixed up constantly, even in supplier catalogs. Here is what they actually mean.
A cell is a single electrochemical unit. One 18650 is one cell. A battery is one or more cells connected together to provide usable voltage and capacity. A battery pack goes further: it combines cells with a BMS (battery management system) or PCM (protection circuit module), wiring, connectors, insulation, and an enclosure. UL Research Institutes defines a cell as a single unit that converts chemical energy into electrical energy and a battery as one or more cells electrically connected (UL Research Institutes).
When someone says they need “long cylindrical cells," they might mean loose cells for pack assembly, or they might actually need finished battery packs. Clarifying this early saves significant time in the sourcing process.
Chemistries Used in Long Cylindrical Cells
The same physical format can house different chemistries with very different performance profiles. A 32700 cell could be LiFePO4 or Li-ion NCM. Two cells that look identical on the outside can behave very differently under load.
| Chemistry | Typical Cylindrical Use | Strengths | Watch-Outs |
|---|---|---|---|
| NCM/NCA Li-ion | Laptops, e-bikes, power tools, lighting, mobility | Higher energy density, strong power options | Needs robust BMS and thermal design |
| LiFePO4 (LFP) | Solar lighting, ESS, golf carts, RV, lead-acid replacement | Stable chemistry, long cycle life, 3.2V nominal | Lower energy density; packs may be physically larger |
| NiMH / NiCd | Legacy tools, instruments, replacement programs | Mature formats, drop-in compatibility | Lower energy density; NiCd restricted in many markets |
The size code tells you the can. The chemistry tells you the voltage curve, energy density, safety behavior, and cycle-life profile. Always confirm chemistry on the datasheet rather than assuming from the format.
For applications that require LiFePO4 chemistry, Wintonic offers 3.2V LiFePO4 battery cells across several cylindrical and prismatic formats.
Why Engineers Choose Cylindrical Cells
Cylindrical cells have several practical advantages that explain their continued dominance across many applications.
They are mechanically robust. The round metal can withstands internal pressure better than flat formats. Battery University notes that cylindrical cells are easy to manufacture, mechanically stable, and able to handle high internal pressures, though they do not fully use space when placed side by side (Battery University). They also benefit from decades of manufacturing optimization, which keeps costs lower and quality more consistent than newer cell formats.
Fraunhofer ISI’s cell format analysis confirms that cylindrical cells offer high energy densities from efficient use of wound electrodes, combined with high robustness and low costs from established manufacturing. The tradeoff: high-capacity packs built from many small cylindrical cells require significant integration effort, including more welds, more interconnects, and more complex thermal management.
The Tradeoffs
Round cells leave gaps when packed into rectangular modules. A battery pack made of hundreds of long cylindrical cells needs extensive welding and careful interconnect design. Prismatic and pouch cells often fill rectangular volume more efficiently, though they bring their own mechanical and sourcing challenges.
Practitioners on Reddit’s r/FSAE emphasize that the real comparison should be “cell vs cell," not “cylindrical vs pouch." Total cell count, bulk cost, pack capacity, max current, pack volume, and packaging efficiency all matter more than shape alone. In r/electricvehicles, users describe cylindrical cells as more commodity-like and easier to source, but note that large packs need careful interconnect and weld design.
Battery engineers on LinkedIn make a similar point: form factor affects the entire pack architecture, including cost curve, thermal strategy, structural integration, and supply-chain complexity. Choosing cylindrical is a system-level decision, not just a purchasing decision.
Cylindrical cells are usually easier to source and automate. Prismatic and pouch cells often use rectangular pack volume more efficiently. The best choice is always application-specific.
Choosing Between 18650, 21700, 26650, and 32700
Bigger is not automatically better. A larger cylindrical cell reduces cell count and welds per pack, but it increases energy per cell, which raises the importance of thermal design, venting, abuse testing, and cell qualification. The right format depends on your application constraints.
| Buyer Need | Likely Starting Format | Why |
|---|---|---|
| Laptop replacement packs | 18650 or 21700 | Mature, compact, established in electronics packs |
| E-bike or scooter pack | 18650 or 21700 | Good balance of capacity, current, and supplier availability |
| Power tools | High-drain 18650 or 21700 | High current options with proven pack designs |
| Solar lighting, small LFP pack | 26650, 32650, or 32700 LiFePO4 | 3.2V building blocks for simpler low-voltage packs |
| UPS or industrial backup | 21700, 26650, 32650/32700, or prismatic | Depends on voltage, current, runtime, and thermal design |
| Golf cart, RV, or ESS | Often LiFePO4 pack (cylindrical or prismatic) | Cycle life, safety posture, and pack serviceability matter |
| EV large-format design | 46-series | Reduces cell count; demands advanced thermal and manufacturing capability |
The 5-Question Buyer Filter
Before choosing a long cylindrical cell format, work through these questions:
- Fit: What diameter and length can your product or pack enclosure physically accept?
- Energy: How many watt-hours does the application require?
- Power: What continuous and peak current does the load demand?
- Safety: What BMS, venting, spacing, insulation, and certifications are required?
- Supply: Can the supplier provide stable lots, traceability, samples, and compliance documents?
Explore custom battery pack options if you need cells integrated into a finished pack with BMS, wiring, connectors, and enclosure.
Safety and Compliance
Cylindrical cells are not just metal tubes with energy inside. They contain multiple layers of safety engineering, and every layer matters.
Cell-Level Safety
Many commercial cylindrical lithium-ion cells include built-in safety mechanisms: a separator between electrodes, a vent or burst disk for overpressure relief, and in some designs, a Positive Temperature Coefficient (PTC) device and Current Interrupt Device (CID). The NFPA report notes that hard-case cells require safety vents to allow controlled venting if a cell becomes over-pressurized.
However, cell-level safety is necessary but not sufficient. NASA’s Lessons Learned database warns that battery packs built with commercial cylindrical cells in multi-cell configurations have experienced thermal runaway under various test conditions, even when individual cells contained PTC and CID devices.
Pack-Level Safety
A battery pack needs a BMS or PCM to protect against overvoltage, undervoltage, overcurrent, and overtemperature. It also needs proper cell matching, insulation, mechanical spacing, and a thermal management strategy.
A cylindrical cell may contain safety devices, but a pack still needs correct BMS design, cell matching, insulation, spacing, thermal management, and certification testing.
A YouTube test of 32700 LiFePO4 cells at 20A continuous discharge illustrated this well: the test focused entirely on whether cells became dangerously hot at that discharge level. Current rating must be verified under thermal conditions close to the real pack design, not just on a bench with open air cooling.
Compliance Documents Buyers Should Request
For B2B sourcing, compliance documentation is not optional. It directly affects shipping, customs clearance, marketplace acceptance, and insurance coverage. PHMSA states that lithium cells and batteries offered for transport must have passed UN38.3 design tests, and that test summaries provide traceability and accountability (PHMSA).
Before placing a bulk order, request:
- Cell datasheet with test conditions
- UN38.3 test summary
- MSDS/SDS
- IEC62133 or IEC62619 certification (where applicable)
- UL, CB, or CE documentation (where applicable)
- RoHS compliance
- Lot traceability and capacity distribution data
- Internal resistance range
- Cell grade definition
- BMS parameters (for assembled packs)
Review available battery compliance certificates to understand what documentation covers specific cell and pack products.
Common Mistakes When Sourcing Long Cylindrical Cells
Mistake 1: Assuming the Size Code Equals Capacity
A 21700 is not a specification. It is a can size. Two 21700 cells from different manufacturers or chemistry lines can have wildly different capacities, discharge ratings, and cycle-life profiles. Never assume that two cells with the same size code are interchangeable.
Mistake 2: Ignoring Actual Protected-Cell Length
Nominal size codes refer to the bare cell. Button tops, protection boards, and wraps can add 2 to 5 mm of length. Users on CandlePower Forums repeatedly report that protected 18650 and 21700 cells cause fit problems in chargers and devices designed for bare-cell dimensions (CandlePower Forums). If your enclosure was designed around nominal dimensions, a protected cell might not fit.
Mistake 3: Trusting Exaggerated Capacity Claims
Practitioners on Reddit are deeply skeptical of 32700 LiFePO4 cells claiming much more than 6000 mAh. In r/esp32, one user warned they would not trust a source advertising significantly higher capacity without credible test data. In r/batteries, users react negatively to listings that pair inflated mAh numbers with vague specifications. Treat unusually high capacity claims as a qualification trigger, not a buying reason.
Capacity depends on discharge rate, temperature, cutoff voltage, and test method. A “6500 mAh" claim is only meaningful if the datasheet specifies how it was tested. Always ask for test conditions.
Mistake 4: Comparing Formats Without Pack-Level Math
A larger cell reduces cell count, but pack design involves much more. Consider a nominal 51.2V 100Ah pack using 3.2V 6Ah cylindrical cells: that requires roughly 16S17P, or about 272 cells, before adding BMS, busbars, fusing, enclosure, and thermal design. This simple math shows why long cylindrical cells are flexible but can drive up interconnect complexity in large energy storage packs.
Mistake 5: Treating BMS as an Afterthought
BMS is central to pack safety, not a last-minute addition. It protects against the failure modes that cause fires and damage. Verify BMS parameters, cell matching process, and protection thresholds before accepting any assembled pack.
For information on how quality is maintained through cell production and pack assembly, see Wintonic’s quality and testing process.
How to Specify a Long Cylindrical Cell
When requesting quotes from a manufacturer, specificity saves time and avoids costly mismatches. Provide as much of the following as possible:
- Format (18650, 21700, 26650, 32650, 32700, etc.)
- Chemistry (NCM, NCA, LFP, NiMH, NiCd)
- Nominal voltage
- Rated capacity and test conditions
- Minimum acceptable capacity
- Continuous discharge current
- Pulse discharge current and duration
- Internal resistance range
- Charge voltage and charge current
- Discharge cutoff voltage
- Operating temperature range
- Cycle-life requirements and test conditions
- Cell grade and batch traceability
- Required certifications (UN38.3, IEC62133, UL, CB, RoHS)
- Pack configuration if applicable (series/parallel count, BMS specs, enclosure, connectors)
Vague requests like “send me your best 21700" waste time on both sides. The more specific your requirements, the faster you get accurate pricing and samples that actually match your application.
For private-label cells, custom specifications, or branded packaging, Wintonic supports OEM/ODM battery customization across its cylindrical cell and pack product lines.
Frequently Asked Questions
Are long cylindrical cells the same as 18650 cells?
No. An 18650 is one type of cylindrical cell. Other common formats include 21700, 26650, 32650, and 32700. “Long cylindrical cell" is a descriptive phrase covering all elongated round battery cells, not a reference to any single product.
What does 21700 mean?
In battery terminology, 21700 describes a cylindrical cell approximately 21 mm in diameter and 70 mm long. The code identifies the can size only. It says nothing about chemistry, capacity, or discharge rating.
Is a 21700 always better than an 18650?
Not necessarily. A 21700 often stores more energy per cell because it is physically larger, but the right choice depends on current draw, enclosure space, thermal design, pack layout, and cost. “Better" only makes sense relative to a specific application.
Are 32700 cells always LiFePO4?
Many 32700 cells on the market are LiFePO4, especially the 3.2V 6Ah-class products used in solar, ESS, and industrial packs. But the size code alone does not guarantee chemistry. Always confirm with the cell datasheet.
Why are protected cylindrical cells longer than the size code suggests?
Protection circuits, button tops, and added wrappers increase real length beyond nominal dimensions. Forum users commonly report that protected 18650 and 21700 cells are 2 to 5 mm longer than expected, causing charger and device fit problems.
What is the difference between a cell and a battery pack?
A cell is one electrochemical unit. A battery pack connects multiple cells and adds a BMS or PCM, wiring, insulation, connectors, and an enclosure to create a usable, protected power source.
Do cylindrical cells need a BMS?
In any multi-cell battery pack, yes. A BMS protects against overvoltage, undervoltage, overcurrent, and overtemperature. Even single-cell applications benefit from protection circuits in most use cases.
What documents should I request before buying cylindrical lithium cells in bulk?
At minimum: cell datasheets with test conditions, UN38.3 test summary, MSDS/SDS, applicable IEC or UL certifications, lot traceability, capacity test data, and shipping classification information. PHMSA requires that lithium cells offered for transport must have passed UN38.3 design tests.
